Here, I had to test a Roman Republic-style political simulation into a literary moral map. A senate governs under normal conditions, but crises can activate an emergency autocrat. Beneath that constitutional switch sits a richer system of patronage, propaganda, delayed legislation, factional conflict, and informal influence networks. On top of the political model, every actor is assigned a Dantean station through time, from Limbo down to Treachery.
The base model already tracks a senate, an autocrat, crises, legal resistance, propaganda, patronage, delayed legislation, internal factions, and the shifting weight matrix of real political influence. I then added a second layer that interprets every person in the system through Dante’s architecture of sin. Each council member and the autocrat receive a moral station at every moment in time. The upper circles describe softer corruptions such as lust, gluttony, greed, wrath, and heresy. The deeper circles capture harder political pathologies. Violence is separated into violence against others, violence against self, and violence against God and nature. Fraud is split into the ten Malebolge-style classes, from panders and seducers down to liars and falsifiers. Treachery marks the deepest betrayal of the republic. The result is not a theological claim. It is an interpretive model. Dante’s moral geography becomes a way to visualize how political systems decay, recover, or harden under pressure. A person does not simply become more powerful or less powerful. They also move downward or upward in a moral landscape shaped by coercion, deception, institutional betrayal, and constitutional repair.
In the simulation, the formal constitution and the informal network of influence do not always match. During peacetime, the senate can dominate decision-making even when the autocrat is ambitious. During a severe crisis, the emergency authority can surge. If law, transparency, and resilience are weak, short-term emergency power can become long-term capture. When resilience is strong, the republic can survive the shock and pull the system back upward. The Dante layer makes those transitions visible. Early institutional decay tends to appear as heresy, the rejection of constitutional norms. Periods of manipulation and information control often lead to fraud. Acute emergencies push many actors into violence. When the crisis passes and law returns, some actors drift back toward the lighter circles, while others remain fixed in deeper stations. In the sample run, the republic endured a long, deceptive phase, fell into a violent wartime episode, then partially recovered. The autocrat, however, remained morally anchored in treachery. What makes this useful is that it joins mathematics, political theory, and narrative symbolism in a single frame. The model still produces quantitative output such as effective power weights, faction support, legal barriers, crisis severity, and long-term entrenchment. But the Inferno mapping turns those abstractions into a visual story of republican decline and resistance. It shows not only who ruled, but what kind of moral order that rule produced.
This is also a reminder that political breakdown is rarely a single event. Republics often decay in layers. First, norms weaken. Then the law bends. Then deception spreads. Then violence becomes thinkable. Only at the end does treachery appear as an obvious final condition. Dante gives us a language for that descent. Simulation gives us a way to watch it unfold.
Why combine Rome, Dante, and numerics?
The Roman dictatorship is a useful constitutional archetype because it separates ordinary collegiate rule from exceptional concentration of power. Modern scholarship stresses that the office was an emergency magistracy constrained by appointment, task, and expected abdication, even though its historical uses varied across the Republic[2][3]. Dante’s Inferno offers a second architecture, not institutional but moral. Its descent from lighter sins to treachery provides a vivid language for representing how political systems corrode from appetite and vanity into deception, coercion, and betrayal[1].
The simulation joins those two structures. The Roman layer determines who governs. The Dantean layer describes what kind of moral order that government produces. This is an interpretive model rather than a theological claim. The goal is not to classify real people metaphysically. The goal is to make institutional drift visible through a symbolic and numerically explicit moral geometry.
Model overview
The system tracks one autocrat and \(N=100\) council members. Each member belongs to a faction with its own distribution of legalism, fear, susceptibility to manipulation, reform capacity, and security preference. The global state at time step \(t\) is
\[
\mathbf{x}_t = \big(P_t, M_t, R_t, X_t, z_t, \mathbf{s}_t, \mathbf{b}_t\big),
\]
Here \(P_t\) is entrenched autocrat power, \(M_t\) is the manipulation apparatus, \(R_t\) is constitutional resilience, \(X_t\) is social stress, \(z_t\) is the crisis state, \(\mathbf{s}_t\in[0,1]^N\) is member support for the executive, and \(\mathbf{b}_t\in[0,1]^N\) is member level barrier strength.
A key design decision is to avoid hand tuning dozens of unrelated coefficients. Instead, the simulation derives internal rates from five interpretable controls,
\[
(I, A, C, T, V) = \big(\text{institutional strength},\ \text{autocrat skill},\ \text{crisis proneness},\ \text{transparency},\ \text{social volatility}\big).
\]
This reduction makes the model easier to steer while still producing rich dynamics.
Delayed perception and legislative latency
The senate does not observe the executive in real time. Member \(i\) reacts to a delayed and noisy signal,
\[
\tilde{P}_{i,t} = P_{t-\tau}\,\exp\!\big[-\kappa M_{t-\tau}\eta_i\big] + 0.30\,C_{t-\tau} + 0.12\,X_{t-\tau} + \varepsilon_{i,t},
\]
where \(\tau\) is legislative latency, \(\kappa\) controls obfuscation, \(\eta_i\) is factional bias, and \(\varepsilon_{i,t}\) is observation noise. This follows the logic of explicit numerical stepping in stochastic settings, though the present model is discrete and interpretive rather than directly estimated[4].
Member updates
Member support \(s_{i,t}\) and member barrier \(b_{i,t}\) evolve under patronage, conformity, fear, legalism, and perceived threat. In simplified form,
\[
s_{i,t+1} = \Pi_{[0,1]}\Big(s_{i,t} + \Delta t\,[g_i(M_t,C_t,\bar{s}_{f(i),t}) - \ell_i(P_t,R_t,b_{i,t})]\Big),
\]
\[
b_{i,t+1} = \Pi_{[0,1]}\Big(b_{i,t} + \Delta t\,[r_i(\tilde{P}_{i,t},R_t) - c_i(M_t,P_t,C_t)]\Big).
\]
The operator \(\Pi_{[0,1]}\) clips values to the unit interval. The first update rewards order and patronage. The second punishes norm breaking, corruption, and fatigue.
Macro updates
The macro variables are then updated from the member field,
\[
R_{t+1} = \Pi_{[0,1]}\Big(R_t + \Delta t\,[\rho L_t(1-R_t) - \chi(P_t + 0.5M_t + 0.4X_t)R_t]\Big),
\]
\[
X_{t+1} = \Pi_{[0,1]}\Big(X_t + \Delta t\,[\sigma C_t(1-X_t) + \psi F_t(1-X_t) + \beta P_t(1-L_t)(1-X_t) - \omega(R_t+0.5L_t)X_t]\Big),
\]
\[
M_{t+1} = \Pi_{[0,1]}\Big(M_t + \Delta t\,[\mu P_t(1-M_t) + \nu \bar{s}_tP_t(1-M_t) + \zeta C_t(1-L_t)(1-M_t) - \lambda L_tM_t]\Big),
\]
\[
P_{t+1} = \Pi_{[0,1]}\Big(P_t + \Delta t\,[\alpha P_t(1-P_t) + \xi C_t(1-L_t)(1-P_t) + \phi \bar{s}_t(1-P_t) + \gamma M_t(1-P_t) - \delta L_tP_t - \rho_R R_t(1-\bar{s}_t)P_t]\Big).
\]
Here \(L_t\) is effective legal strength aggregated from barriers and \(F_t\) is factional fragmentation.
Formal and informal power
A crisis does not automatically hand total control to the autocrat. Instead, emergency power is activated through a sigmoid transfer,
\[
\alpha_t = \sigma\!\Big(k\,[C_t + 0.25M_t + 0.15\bar{s}_t - 0.55L_t - \theta]\Big),
\]
\[
w^{\mathrm{formal}}_{a,t} = P_t + (1-P_t)\alpha_t.
\]
This captures the Roman idea that constitutional emergency can shift power rapidly without guaranteeing permanent entrenchment.
But formal rules are not the whole story. The council also forms an informal influence network \(K_t\) whose edges depend on factional similarity, ideological proximity, susceptibility, and executive pull. We use the stationary distribution of \(K_t\) as a compact measure of long run centrality, following the general logic of network centrality analysis[5]. The final effective weight is then a convex blend,
\[
\mathbf{w}^{\mathrm{eff}}_t = (1-\chi_t)\,\mathbf{w}^{\mathrm{formal}}_t + \chi_t\,\boldsymbol{\pi}(K_t),
\]
The capture weight \(\chi_t\) rises when manipulation, crisis, fragmentation, and support for the executive jointly increase.

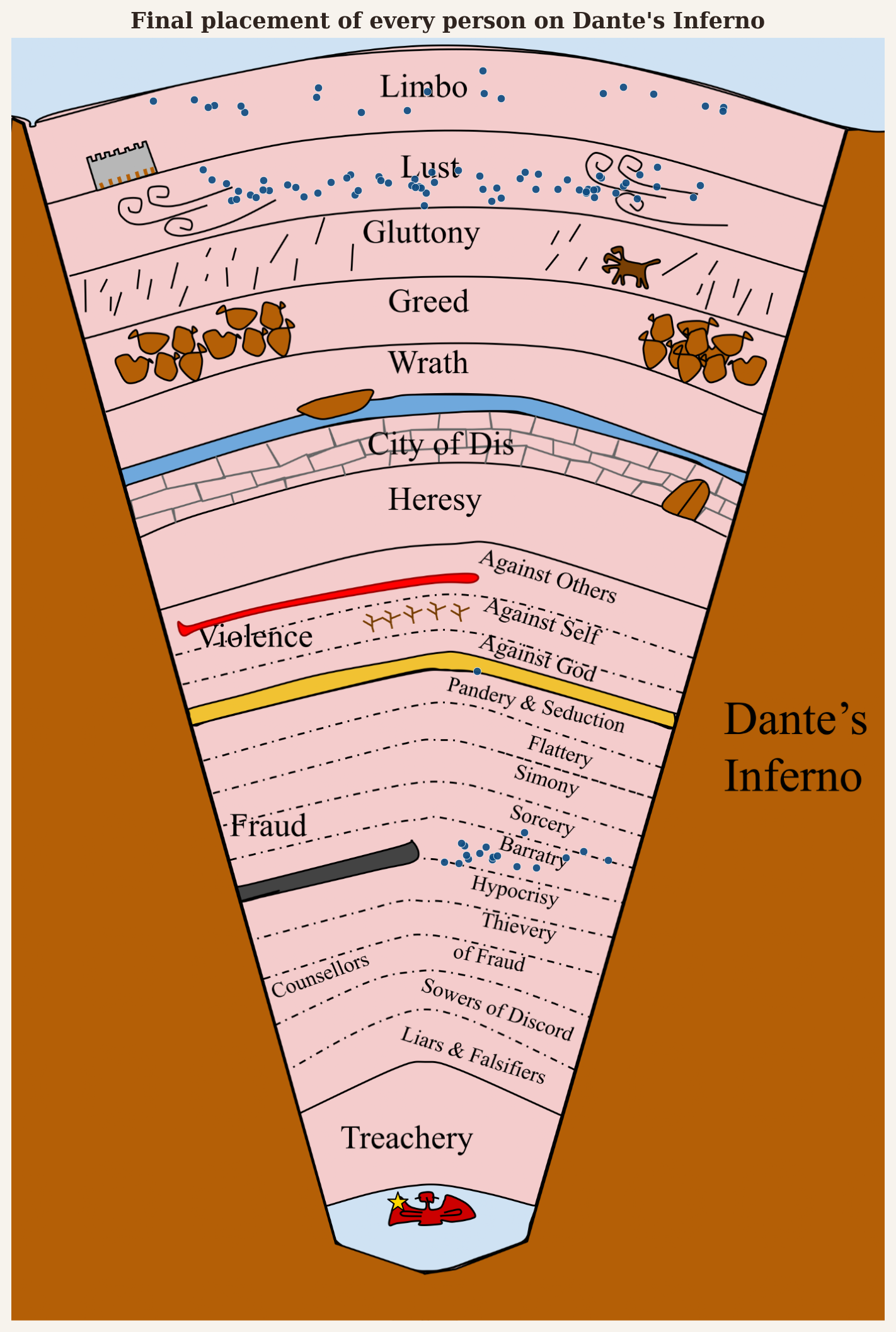

The Dante layer
The moral layer assigns every person to one station of Dante’s hell at every time step. The upper circles represent lighter political corruptions such as vanity, appetite, greed, wrath, and constitutional heresy. The lower levels represent harder pathologies.
- Violence is split into three stations: against others, against self, and against God or nature.
- Fraud is split into ten stations in the spirit of the Malebolge: panders and seducers, flatterers, simoniacs, sorcerers, barrators, hypocrites, thieves, fraudulent counselors, sowers of discord, and liars or falsifiers.
- Treachery marks deep betrayal of faction, republic, or constitutional order.
For each actor \(i\) and station \(m\), the code computes an interpretive score
\[
q_{i,m,t} = h_m\big(P_t,M_t,R_t,X_t,C_t,L_t,s_{i,t},b_{i,t},\tilde{P}_{i,t},\bar{s}_{f(i),t}\big),
\]
then assigns the deepest active station whose score exceeds a threshold, with special precedence rules for Treachery, Fraud, and the Violence subrings.

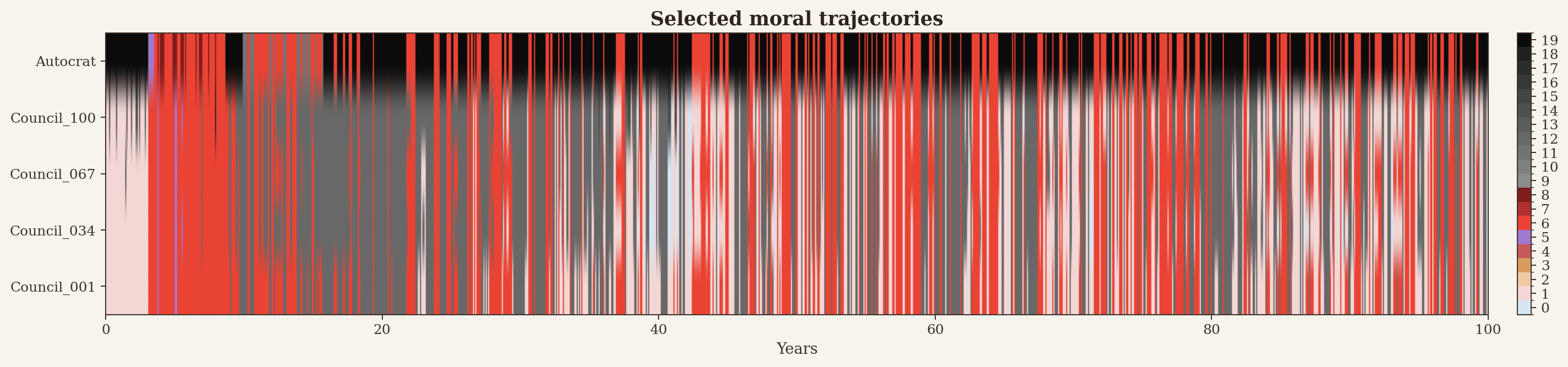

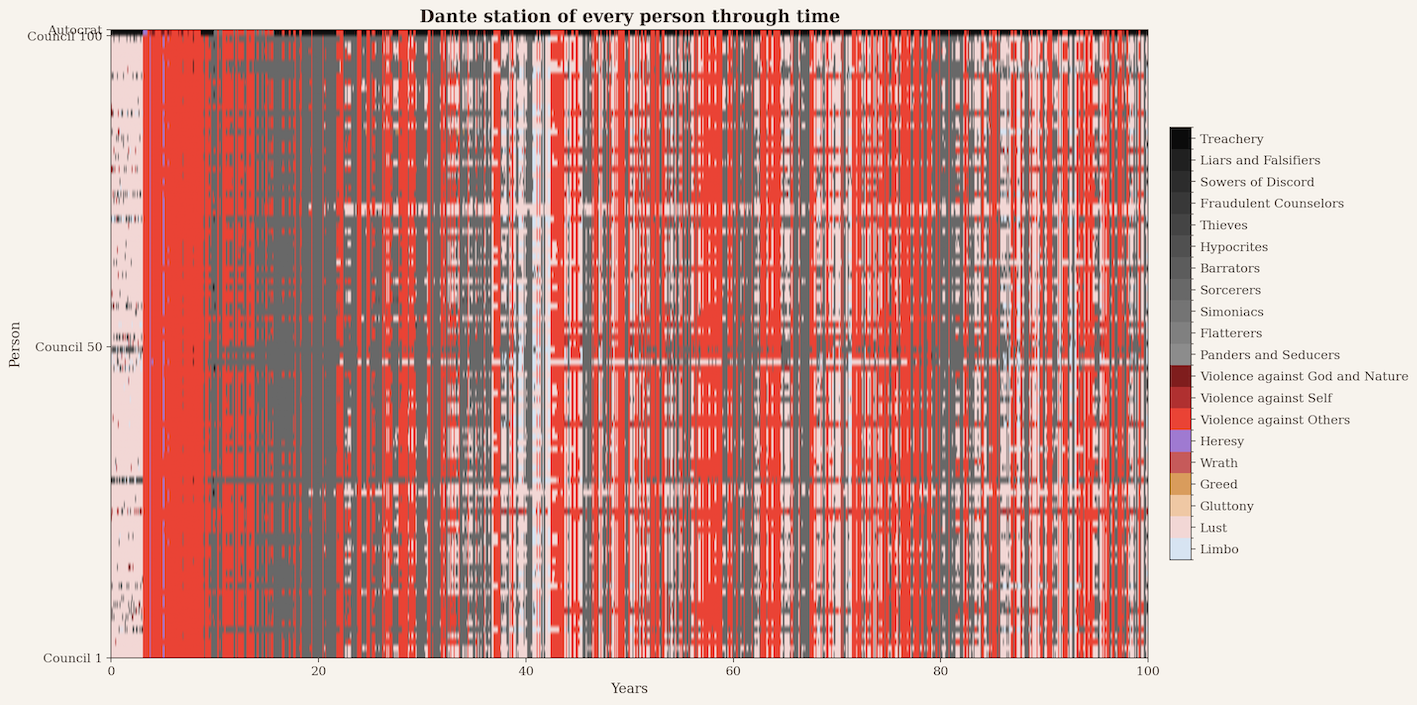

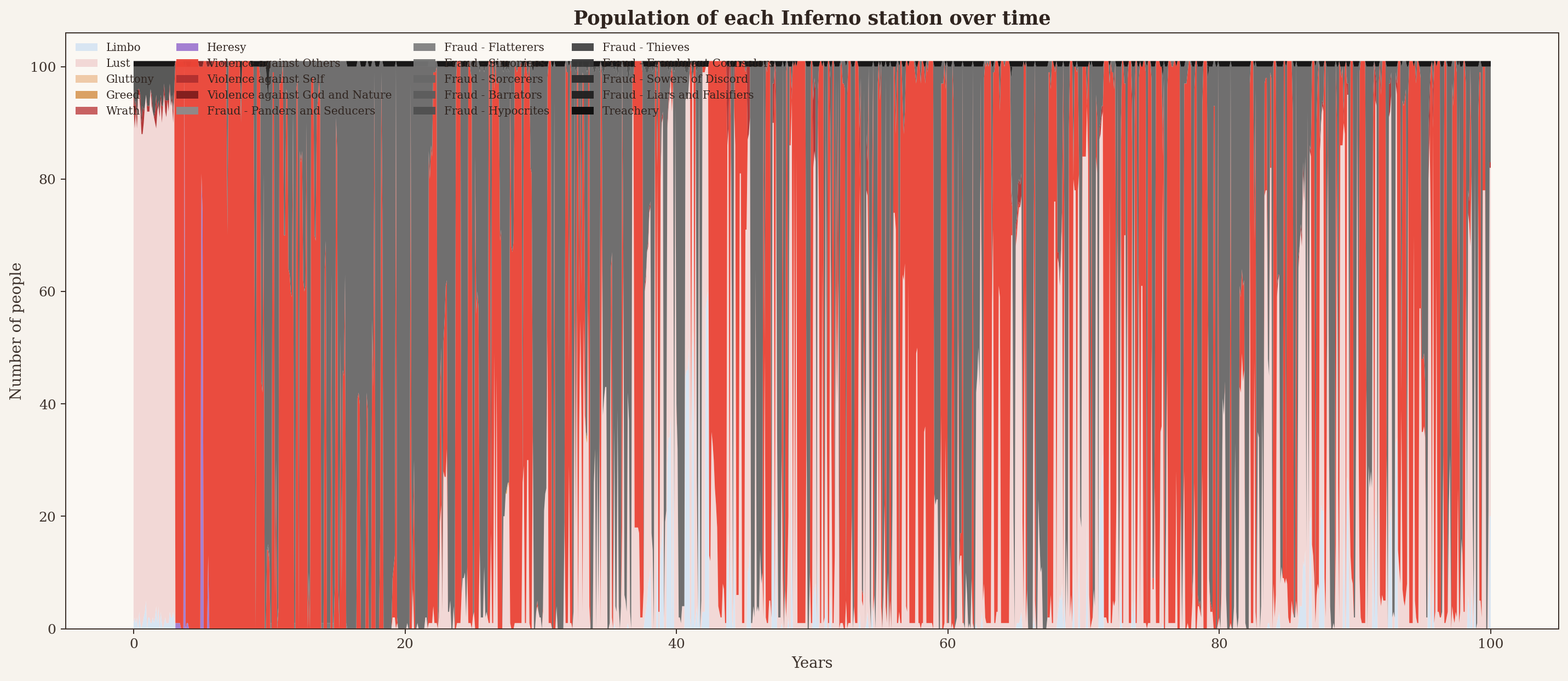

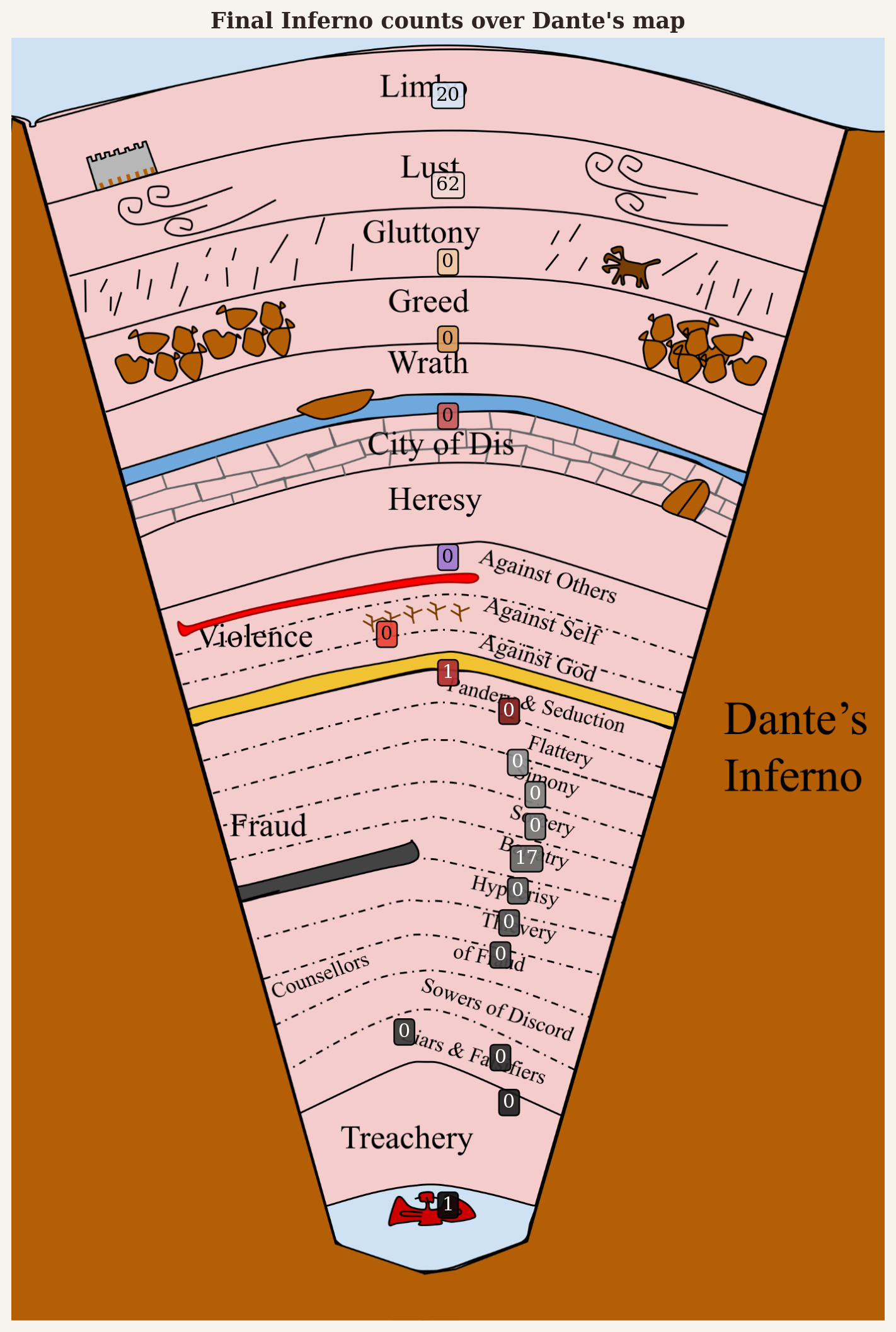

How to read the Figures

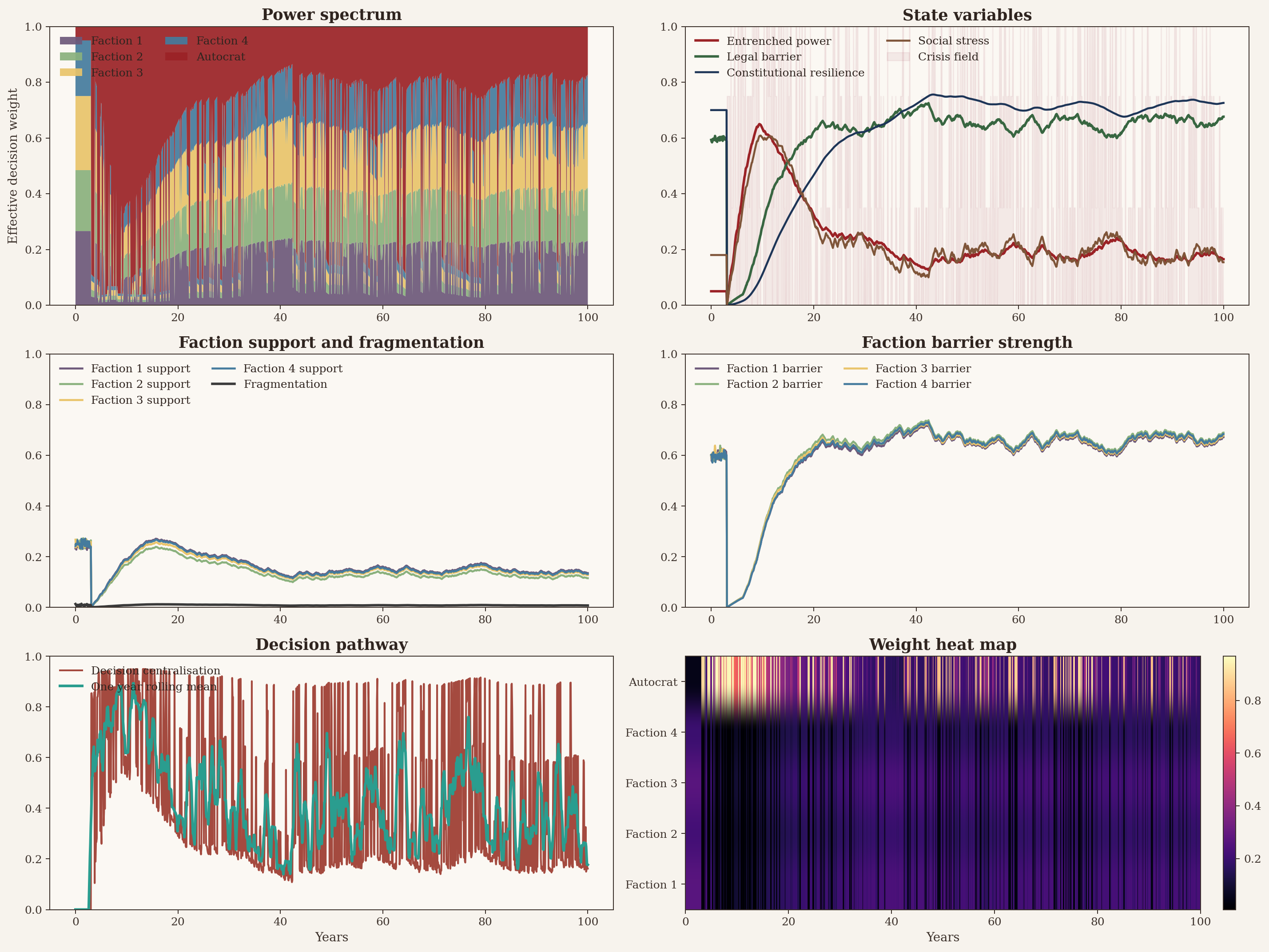

The first figure is the central dashboard (above). It shows the shifting power spectrum, state variables, faction support, faction barriers, and decision path. The second shows the Dante station for each person over time. The third aggregates the same information into a station-by-time population profile. The fourth and fifth place the final population back onto the funnel of hell. Together, the figures allow the reader to move from institutions to numbers to moral interpretation.
Results in words
In the default seed, the republic experiences a strong early authoritarian surge, then partially recovers as the legal barrier rebuilds. The moral layer is especially revealing. Early decay appears as constitutional heresy, followed by a long phase dominated by fraud-related stations, especially the deceptive classes. A wartime shock then drives many actors into violence against others. The later decades cool somewhat, with some council members moving back toward lighter stations. The autocrat, however, ends in treachery and remains dominated by treachery across the second half of the run.
This work is meant to emphasize both a technical note and a public-facing essay. It contains the equations needed to understand the mechanics, the figures needed to tell the story, and code toggles for readers who want implementation details without breaking the flow of the main text. That makes it suitable for a blog post, a project note, a computational humanities piece, or a short appendix to a larger methods paper.
References
- Dante Alighieri. The Divine Comedy of Dante Alighieri. Volume 1: Inferno. Translated by Robert M. Durling. Oxford University Press, New York, 1996.
- Gregory K. Golden. Crisis Management during the Roman Republic: The Role of Political Institutions in Emergencies. Cambridge University Press, Cambridge, 2013.
- Frederik Juliaan Vervaet. “Dictator.” Oxford Classical Dictionary, 2022. DOI: 10.1093/acrefore/9780199381135.013.2151.
- Peter E. Kloeden and Eckhard Platen. Numerical Solution of Stochastic Differential Equations. Springer, Berlin and Heidelberg, 1992. DOI: 10.1007/978-3-662-12616-5.
- Mark Newman. Networks: An Introduction. Oxford University Press, Oxford, 2010. DOI: 10.1093/acprof:oso/9780199206650.001.0001.
Full Code Block
import os
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.colors import ListedColormap, BoundaryNorm
from dataclasses import dataclass
STATION_NAMES = [
"Limbo",
"Lust",
"Gluttony",
"Greed",
"Wrath",
"Heresy",
"Violence against Others",
"Violence against Self",
"Violence against God and Nature",
"Fraud - Panders and Seducers",
"Fraud - Flatterers",
"Fraud - Simoniacs",
"Fraud - Sorcerers",
"Fraud - Barrators",
"Fraud - Hypocrites",
"Fraud - Thieves",
"Fraud - Fraudulent Counselors",
"Fraud - Sowers of Discord",
"Fraud - Liars and Falsifiers",
"Treachery",
]
STATION_COLORS = [
"#d7e4f2",
"#f2d7d5",
"#efc8a4",
"#d99c5c",
"#c65a5a",
"#9f7ad1",
"#ea4335",
"#b03030",
"#7f1d1d",
"#8c8c8c",
"#808080",
"#747474",
"#686868",
"#5c5c5c",
"#505050",
"#444444",
"#383838",
"#2c2c2c",
"#202020",
"#0b0b0b",
]
STATION_POSITIONS = {
0: (0.50, 0.955, 0.40),
1: (0.50, 0.885, 0.34),
2: (0.50, 0.825, 0.30),
3: (0.50, 0.765, 0.27),
4: (0.50, 0.705, 0.24),
5: (0.50, 0.595, 0.20),
6: (0.43, 0.535, 0.14),
7: (0.50, 0.505, 0.10),
8: (0.57, 0.475, 0.14),
9: (0.58, 0.435, 0.12),
10: (0.60, 0.410, 0.11),
11: (0.60, 0.385, 0.11),
12: (0.59, 0.360, 0.11),
13: (0.58, 0.335, 0.10),
14: (0.57, 0.310, 0.10),
15: (0.56, 0.285, 0.10),
16: (0.45, 0.225, 0.11),
17: (0.56, 0.205, 0.10),
18: (0.57, 0.170, 0.11),
19: (0.50, 0.090, 0.09),
}
@dataclass
class MetaConfig:
years: float = 100.0
dt: float = 1.0 / 12.0
council_size: int = 100
n_factions: int = 4
seed: int = 42
institutional_strength: float = 0.65
autocrat_skill: float = 0.55
crisis_proneness: float = 0.40
information_transparency: float = 0.60
social_volatility: float = 0.45
@dataclass
class InternalParams:
latency_years: float
observation_noise: float
obfuscation: float
ambition: float
crisis_capture: float
legal_drag: float
reform_capacity: float
propaganda: float
patronage_feedback: float
censorship: float
oversight: float
restoration: float
stress_from_crisis: float
repression_backlash: float
polarisation: float
stabilisation: float
support_gain: float
support_order: float
support_loss: float
support_norm: float
support_barrier: float
conformity: float
barrier_corruption: float
barrier_fear: float
barrier_fatigue: float
barrier_restoration: float
apparatus_feedback: float
capture_mix: float
crisis_threshold: float
crisis_steepness: float
def clip01(x):
return np.clip(x, 0.001, 0.999)
def sigmoid(x):
return 1.0 / (1.0 + np.exp(-x))
def safe_scalar(x, fallback=0.0):
return float(np.nan_to_num(x, nan=fallback, posinf=fallback, neginf=fallback))
def safe_array(x, fallback=0.0):
return np.nan_to_num(np.asarray(x, dtype=float), nan=fallback, posinf=fallback, neginf=fallback)
def safe_mean_from_mask(arr, mask, fallback=0.0):
if mask.sum() == 0:
return fallback
return safe_scalar(arr[mask].mean(), fallback=fallback)
def rolling_mean(x, window):
if window <= 1:
return x.copy()
kernel = np.ones(window) / window
left = window // 2
right = window - 1 - left
padded = np.pad(x, (left, right), mode="edge")
return np.convolve(padded, kernel, mode="valid")
def stationary_distribution(K, n_iter=40):
n = K.shape[0]
pi = np.full(n, 1.0 / n)
for _ in range(n_iter):
pi = safe_array(pi @ K, fallback=1.0 / n)
s = pi.sum()
if s <= 0 or not np.isfinite(s):
pi = np.full(n, 1.0 / n)
else:
pi = pi / s
return pi
def mode_int(x, n):
counts = np.bincount(np.asarray(x, dtype=int), minlength=n)
return int(np.argmax(counts))
def person_names(n):
return [f"Council_{i+1:03d}" for i in range(n)] + ["Autocrat"]
def station_counts_over_time(stations):
t_steps = stations.shape[0]
counts = np.zeros((t_steps, len(STATION_NAMES)), dtype=int)
for t in range(t_steps):
counts[t] = np.bincount(stations[t], minlength=len(STATION_NAMES))
return counts
def dominant_stations(stations):
start = stations.shape[0] // 2
trailing = stations[start:]
n_people = stations.shape[1]
dom = np.zeros(n_people, dtype=int)
for i in range(n_people):
dom[i] = mode_int(trailing[:, i], len(STATION_NAMES))
return dom
def derive_internal_params(cfg: MetaConfig) -> InternalParams:
I = cfg.institutional_strength
A = cfg.autocrat_skill
C = cfg.crisis_proneness
T = cfg.information_transparency
V = cfg.social_volatility
return InternalParams(
latency_years=1.0 + 4.0 * (1.0 - T) + 1.0 * V,
observation_noise=0.01 + 0.05 * V * (1.0 - T),
obfuscation=0.20 + 1.80 * A * (1.0 - T),
ambition=0.04 + 0.18 * A,
crisis_capture=0.08 + 0.60 * A * C,
legal_drag=0.10 + 0.60 * I,
reform_capacity=0.04 + 0.32 * I,
propaganda=0.03 + 0.22 * A * (1.0 - T),
patronage_feedback=0.04 + 0.16 * A,
censorship=0.03 + 0.20 * A * C,
oversight=0.08 + 0.36 * I * T,
restoration=0.03 + 0.15 * I,
stress_from_crisis=0.08 + 0.24 * C,
repression_backlash=0.06 + 0.18 * V,
polarisation=0.05 + 0.22 * V,
stabilisation=0.10 + 0.38 * I,
support_gain=0.04 + 0.18 * A,
support_order=0.04 + 0.14 * C,
support_loss=0.05 + 0.22 * I,
support_norm=0.05 + 0.18 * I,
support_barrier=0.03 + 0.14 * I,
conformity=0.04 + 0.14 * V,
barrier_corruption=0.04 + 0.22 * A,
barrier_fear=0.04 + 0.18 * C,
barrier_fatigue=0.03 + 0.14 * V,
barrier_restoration=0.04 + 0.18 * I,
apparatus_feedback=0.04 + 0.15 * A,
capture_mix=0.20 + 0.50 * A * (1.0 - I),
crisis_threshold=0.55 + 0.15 * I - 0.20 * C,
crisis_steepness=8.0 + 8.0 * A,
)
def build_random_factions(cfg: MetaConfig, rng):
N = cfg.council_size
F = cfg.n_factions
I = cfg.institutional_strength
A = cfg.autocrat_skill
T = cfg.information_transparency
V = cfg.social_volatility
if N < F:
raise ValueError("council_size must be at least as large as n_factions")
sizes = np.ones(F, dtype=int)
remaining = N - F
if remaining > 0:
sizes += rng.multinomial(remaining, np.full(F, 1.0 / F))
faction_id = np.empty(N, dtype=int)
arrays = {
"bias": np.empty(N),
"susceptibility": np.empty(N),
"reaction": np.empty(N),
"legalism": np.empty(N),
"fear": np.empty(N),
"reform": np.empty(N),
"patronage": np.empty(N),
"security": np.empty(N),
}
start = 0
for k in range(F):
size = int(sizes[k])
stop = start + size
faction_id[start:stop] = k
shift = rng.normal(0.0, 0.15)
arrays["bias"][start:stop] = np.clip(
rng.normal(1.0 + 0.6 * (1.0 - T) * shift, 0.10, size), 0.5, 1.7
)
arrays["susceptibility"][start:stop] = np.clip(
rng.normal(0.35 + 0.45 * A + 0.20 * V + 0.10 * shift, 0.10, size), 0.05, 1.3
)
arrays["reaction"][start:stop] = np.clip(
rng.normal(0.08 + 0.20 * I - 0.04 * shift, 0.03, size), 0.02, 0.50
)
arrays["legalism"][start:stop] = np.clip(
rng.normal(0.25 + 0.65 * I - 0.10 * shift, 0.08, size), 0.05, 1.0
)
arrays["fear"][start:stop] = np.clip(
rng.normal(0.20 + 0.50 * cfg.crisis_proneness + 0.12 * shift, 0.07, size), 0.05, 1.0
)
arrays["reform"][start:stop] = np.clip(
rng.normal(0.20 + 0.60 * I - 0.10 * A, 0.07, size), 0.05, 1.0
)
arrays["patronage"][start:stop] = np.clip(
rng.normal(0.15 + 0.60 * A + 0.10 * shift, 0.08, size), 0.02, 1.2
)
arrays["security"][start:stop] = np.clip(
rng.normal(0.20 + 0.50 * cfg.crisis_proneness + 0.10 * shift, 0.08, size), 0.05, 1.0
)
start = stop
masks = np.array([faction_id == k for k in range(F)])
same = (faction_id[:, None] == faction_id[None, :]).astype(float)
arrays.update({
"sizes": sizes,
"faction_id": faction_id,
"masks": masks,
"same": same,
})
return arrays
def sample_crisis_state(current_state, stress, resilience, entrenched_power, cfg, rng):
stress = safe_scalar(stress, 0.2)
resilience = safe_scalar(resilience, 0.5)
entrenched_power = safe_scalar(entrenched_power, 0.1)
base = safe_scalar(cfg.crisis_proneness, 0.4)
p = np.zeros(4, dtype=float)
if current_state == 0:
p[0] = 0.82 - 0.25 * stress + 0.10 * resilience - 0.10 * base
p[1] = 0.10 + 0.18 * stress + 0.10 * base
p[2] = 0.04 + 0.10 * base
p[3] = 0.04 + 0.12 * stress + 0.05 * entrenched_power
elif current_state == 1:
p[0] = 0.22 + 0.16 * resilience
p[1] = 0.44 - 0.06 * resilience
p[2] = 0.16 + 0.12 * base
p[3] = 0.18 + 0.12 * stress + 0.06 * entrenched_power
elif current_state == 2:
p[0] = 0.14 + 0.10 * resilience
p[1] = 0.14 + 0.05 * stress
p[2] = 0.60 - 0.08 * resilience + 0.10 * base
p[3] = 0.12 + 0.10 * stress + 0.05 * entrenched_power
else:
p[0] = 0.10 + 0.10 * resilience
p[1] = 0.15 + 0.08 * resilience
p[2] = 0.10 + 0.06 * base
p[3] = 0.65 - 0.08 * resilience + 0.10 * entrenched_power + 0.08 * stress
p = safe_array(p, fallback=0.25)
p = np.clip(p, 1e-6, None)
s = p.sum()
if (not np.isfinite(s)) or s <= 0:
p = np.array([0.70, 0.15, 0.10, 0.05], dtype=float)
else:
p = p / s
return rng.choice(4, p=p)
def issue_preferences(issue_type, P, M, R, X, C, support, barrier, security, legalism, rng):
noise = rng.normal(0.0, 0.05, size=support.shape[0])
if issue_type == 0:
council = 0.10 + 0.55 * C + 0.22 * security + 0.10 * support - 0.16 * barrier - 0.10 * R + noise
leader = clip01(0.72 + 0.22 * C + 0.05 * M)
elif issue_type == 1:
council = 0.05 + 0.28 * support + 0.18 * M + 0.10 * C - 0.40 * barrier - 0.18 * legalism - 0.16 * R + noise
leader = clip01(0.92 + 0.04 * M)
else:
council = 0.12 + 0.15 * support + 0.16 * X + 0.10 * C + 0.10 * security - 0.18 * barrier - 0.08 * legalism + noise
leader = clip01(0.65 + 0.10 * X + 0.08 * M)
return clip01(council), float(leader)
def inferno_station_scores(
P, M, R, X, C, law_strength,
support, barrier, perceived, faction_mean_support, faction
):
N = support.shape[0]
scores = np.zeros((N + 1, len(STATION_NAMES)), dtype=float)
deviation = np.abs(support - faction_mean_support)
legal_break = (1.0 - faction["legalism"]) * support
corruption = faction["patronage"] * M
coercion = faction["security"] * C + faction["fear"] * (P + 0.4 * C)
deceit = M * faction["susceptibility"] + 0.4 * perceived
scores[:N, 1] = clip01(0.20 * support + 0.20 * faction["security"] + 0.12 * C + 0.10 * M + 0.16 * (1.0 - barrier))
scores[:N, 2] = clip01(0.36 * corruption + 0.18 * support + 0.18 * X + 0.10 * (1.0 - barrier))
scores[:N, 3] = clip01(0.40 * corruption + 0.14 * support + 0.16 * (1.0 - R) + 0.12 * (1.0 - law_strength))
scores[:N, 4] = clip01(0.26 * coercion + 0.24 * X + 0.10 * support + 0.12 * (1.0 - barrier) + 0.10 * deviation)
scores[:N, 5] = clip01(0.42 * legal_break + 0.12 * M + 0.18 * (1.0 - R) + 0.12 * (1.0 - law_strength))
scores[:N, 6] = clip01(0.34 * coercion + 0.18 * P + 0.10 * (1.0 - barrier) + 0.08 * support + 0.16 * (1.0 - law_strength))
scores[:N, 7] = clip01(0.14 * X + 0.12 * deviation + 0.10 * (1.0 - support) + 0.08 * (1.0 - barrier) + 0.06 * faction["fear"])
scores[:N, 8] = clip01(0.24 * legal_break + 0.16 * X + 0.16 * (1.0 - R) + 0.12 * (1.0 - law_strength) + 0.08 * deviation)
scores[:N, 9] = clip01(0.34 * deceit + 0.14 * support + 0.10 * corruption + 0.10 * (1.0 - barrier))
scores[:N, 10] = clip01(0.36 * deceit + 0.12 * support + 0.12 * (1.0 - barrier) + 0.10 * X)
scores[:N, 11] = clip01(0.40 * corruption + 0.16 * legal_break + 0.16 * (1.0 - R) + 0.08 * (1.0 - law_strength))
scores[:N, 12] = clip01(0.38 * deceit + 0.12 * perceived + 0.10 * (1.0 - barrier) + 0.08 * (1.0 - R))
scores[:N, 13] = clip01(0.42 * corruption + 0.12 * support + 0.16 * (1.0 - law_strength) + 0.08 * deviation)
scores[:N, 14] = clip01(0.30 * support + 0.16 * barrier * (1.0 - faction["legalism"]) + 0.14 * deceit + 0.12 * deviation + 0.08 * (1.0 - R))
scores[:N, 15] = clip01(0.32 * deceit + 0.12 * corruption + 0.16 * deviation + 0.12 * (1.0 - barrier) + 0.06 * (1.0 - R))
scores[:N, 16] = clip01(0.34 * deceit + 0.12 * support + 0.16 * legal_break + 0.08 * X + 0.06 * (1.0 - R))
scores[:N, 17] = clip01(0.30 * deviation + 0.22 * support * (1.0 - barrier) + 0.16 * deceit + 0.16 * X)
scores[:N, 18] = clip01(0.36 * deceit + 0.12 * deviation + 0.10 * (1.0 - barrier) + 0.10 * X + 0.08 * (1.0 - R))
scores[:N, 19] = clip01(0.30 * deviation + 0.18 * support * (1.0 - barrier) + 0.18 * M * faction["susceptibility"] + 0.10 * (1.0 - R) + 0.08 * (1.0 - law_strength))
scores[N, 1] = clip01(0.18 + 0.14 * M + 0.12 * P + 0.12 * X + 0.08 * C)
scores[N, 2] = clip01(0.18 + 0.24 * M + 0.18 * P + 0.12 * X + 0.08 * C)
scores[N, 3] = clip01(0.22 + 0.32 * P + 0.16 * M + 0.10 * (1.0 - R) + 0.08 * (1.0 - law_strength))
scores[N, 4] = clip01(0.16 + 0.24 * C + 0.20 * X + 0.12 * P + 0.08 * (1.0 - law_strength))
scores[N, 5] = clip01(0.16 + 0.36 * (1.0 - R) + 0.16 * M + 0.12 * P)
scores[N, 6] = clip01(0.16 + 0.30 * C + 0.18 * P + 0.08 * X + 0.10 * (1.0 - law_strength))
scores[N, 7] = clip01(0.10 + 0.18 * X + 0.14 * P + 0.12 * (1.0 - law_strength) + 0.08 * M)
scores[N, 8] = clip01(0.16 + 0.22 * (1.0 - R) + 0.14 * X + 0.14 * P + 0.10 * (1.0 - law_strength))
scores[N, 9] = clip01(0.18 + 0.36 * M + 0.12 * P + 0.10 * (1.0 - R))
scores[N, 10] = clip01(0.18 + 0.38 * M + 0.12 * X + 0.08 * (1.0 - law_strength))
scores[N, 11] = clip01(0.20 + 0.38 * P + 0.14 * M + 0.10 * (1.0 - R))
scores[N, 12] = clip01(0.16 + 0.34 * M + 0.12 * (1.0 - R) + 0.10 * X)
scores[N, 13] = clip01(0.18 + 0.36 * P + 0.16 * M + 0.08 * (1.0 - law_strength))
scores[N, 14] = clip01(0.18 + 0.32 * M + 0.16 * P + 0.10 * (1.0 - R))
scores[N, 15] = clip01(0.18 + 0.34 * M + 0.12 * P + 0.10 * X)
scores[N, 16] = clip01(0.20 + 0.38 * M + 0.14 * P + 0.10 * (1.0 - R))
scores[N, 17] = clip01(0.20 + 0.30 * P + 0.16 * M + 0.14 * X)
scores[N, 18] = clip01(0.20 + 0.38 * M + 0.12 * P + 0.08 * (1.0 - R))
scores[N, 19] = clip01(0.24 + 0.30 * P + 0.16 * M + 0.08 * (1.0 - R) + 0.08 * (1.0 - law_strength))
return scores
def assign_inferno_stations(scores):
macro = np.zeros((scores.shape[0], 9), dtype=float)
macro[:, 1] = 1.05 * scores[:, 1]
macro[:, 2] = 1.00 * scores[:, 2]
macro[:, 3] = 1.05 * scores[:, 3]
macro[:, 4] = 1.00 * scores[:, 4]
macro[:, 5] = 1.10 * scores[:, 5]
macro[:, 6] = 1.00 * scores[:, 6:9].max(axis=1)
macro[:, 7] = 1.15 * scores[:, 9:19].max(axis=1)
macro[:, 8] = 1.12 * scores[:, 19]
out = np.zeros(scores.shape[0], dtype=int)
for i in range(scores.shape[0]):
mx = macro[i, 1:].max()
if mx < 0.17:
out[i] = 0
continue
if scores[i, 19] > 0.62:
out[i] = 19
continue
fraud_peak = scores[i, 9:19].max()
violence_peak = scores[i, 6:9].max()
if fraud_peak > 0.50 and fraud_peak >= 0.95 * violence_peak:
out[i] = 9 + int(np.argmax(scores[i, 9:19]))
continue
if violence_peak > 0.50:
out[i] = 6 + int(np.argmax(scores[i, 6:9]))
continue
g = int(np.argmax(macro[i, 1:]) + 1)
if g == 6:
out[i] = 6 + int(np.argmax(scores[i, 6:9]))
elif g == 7:
out[i] = 9 + int(np.argmax(scores[i, 9:19]))
elif g == 8:
out[i] = 19
else:
out[i] = g
return out
def simulate_inferno_republic(cfg: MetaConfig, seed=None):
seed = cfg.seed if seed is None else seed
rng = np.random.default_rng(seed)
ip = derive_internal_params(cfg)
faction = build_random_factions(cfg, rng)
N = cfg.council_size
F = cfg.n_factions
steps = int(round(cfg.years / cfg.dt)) + 1
lag = max(1, int(round(ip.latency_years / cfg.dt)))
t = np.linspace(0.0, cfg.years, steps)
crisis_levels = np.array([0.0, 0.35, 0.75, 1.0])
P = np.zeros(steps)
M = np.zeros(steps)
R = np.zeros(steps)
X = np.zeros(steps)
crisis_state = np.zeros(steps, dtype=int)
crisis_severity = np.zeros(steps)
support = np.zeros((steps, N))
barrier = np.zeros((steps, N))
perceived = np.zeros((steps, N))
faction_support = np.zeros((steps, F))
faction_barrier = np.zeros((steps, F))
legal_effective = np.zeros(steps)
fragmentation = np.zeros(steps)
alpha = np.zeros(steps)
formal_autocrat_weight = np.zeros(steps)
effective_autocrat_weight = np.zeros(steps)
group_weight = np.zeros((steps, F + 1))
decisions = np.zeros(steps)
issue_type = np.zeros(steps, dtype=int)
station = np.zeros((steps, N + 1), dtype=int)
masks = faction["masks"]
same = faction["same"]
P[:lag] = 0.05
M[:lag] = 0.08
R[:lag] = 0.70
X[:lag] = 0.18
for k in range(F):
idx = masks[k]
support[:lag, idx] = np.clip(rng.normal(0.25, 0.05, (lag, idx.sum())), 0.02, 0.98)
barrier[:lag, idx] = np.clip(rng.normal(0.60, 0.06, (lag, idx.sum())), 0.02, 0.98)
def aggregate(s, b):
fs = np.array([safe_mean_from_mask(s, m, 0.0) for m in masks])
fb = np.array([safe_mean_from_mask(b, m, 0.0) for m in masks])
weights = np.array([m.mean() for m in masks], dtype=float)
weights = safe_array(weights, 0.0)
ws = weights.sum()
if ws <= 0:
weights = np.full_like(weights, 1.0 / len(weights))
else:
weights = weights / ws
center = np.sum(weights * fs)
frag = np.sqrt(np.sum(weights * (fs - center) ** 2))
law = np.sum(weights * fb) * (1.0 - 0.75 * frag)
return fs, fb, clip01(law), clip01(frag)
for q in range(lag):
fs, fb, law, frag = aggregate(support[q], barrier[q])
faction_support[q] = fs
faction_barrier[q] = fb
legal_effective[q] = law
fragmentation[q] = frag
formal_autocrat_weight[q] = P[q]
effective_autocrat_weight[q] = P[q]
for j in range(F):
group_weight[q, j] = (1.0 - P[q]) * masks[j].sum() / N
group_weight[q, -1] = P[q]
scores = inferno_station_scores(
P[q], M[q], R[q], X[q], 0.0, law,
support[q], barrier[q], np.full(N, 0.1),
fs[faction["faction_id"]], faction
)
station[q] = assign_inferno_stations(scores)
for k in range(lag, steps - 1):
crisis_state[k] = sample_crisis_state(
crisis_state[k - 1], X[k - 1], R[k - 1], P[k - 1], cfg, rng
)
crisis_severity[k] = crisis_levels[crisis_state[k]]
delayed = k - lag
s_now = support[k].copy()
b_now = barrier[k].copy()
fs, fb, law_now, frag_now = aggregate(s_now, b_now)
faction_support[k] = fs
faction_barrier[k] = fb
legal_effective[k] = law_now
fragmentation[k] = frag_now
faction_mean_support = fs[faction["faction_id"]]
perceived_threat = (
P[delayed] * np.exp(-ip.obfuscation * M[delayed] * faction["bias"])
+ 0.30 * crisis_severity[delayed]
+ 0.12 * X[delayed]
+ rng.normal(0.0, ip.observation_noise, size=N)
)
perceived_threat = clip01(safe_array(perceived_threat, 0.2))
perceived[k] = perceived_threat
ds = (
ip.support_gain * faction["patronage"] * M[k] * (1.0 - s_now)
+ ip.support_order * faction["security"] * crisis_severity[k] * (1.0 - s_now)
+ ip.conformity * (faction_mean_support - s_now)
- ip.support_loss * faction["legalism"] * P[k] * (1.0 - law_now) * s_now
- ip.support_norm * faction["legalism"] * R[k] * s_now
- ip.support_barrier * b_now * s_now
)
db = (
faction["reaction"] * perceived_threat * (1.0 - b_now)
+ ip.barrier_restoration * faction["reform"] * R[k] * (1.0 - P[k]) * (1.0 - b_now)
- ip.barrier_corruption * faction["susceptibility"] * M[k] * s_now * b_now
- ip.barrier_fear * faction["fear"] * (P[k] + 0.5 * crisis_severity[k]) * b_now
- ip.barrier_fatigue * crisis_severity[k] * b_now
)
s_new = clip01(s_now + cfg.dt * safe_array(ds, 0.0))
b_new = clip01(b_now + cfg.dt * safe_array(db, 0.0))
support[k + 1] = s_new
barrier[k + 1] = b_new
fs_new, fb_new, law_new, frag_new = aggregate(s_new, b_new)
faction_support[k + 1] = fs_new
faction_barrier[k + 1] = fb_new
legal_effective[k + 1] = law_new
fragmentation[k + 1] = frag_new
mean_support = safe_scalar(s_new.mean(), 0.25)
dR = ip.reform_capacity * law_new * (1.0 - R[k]) - (0.08 + 0.20 * cfg.autocrat_skill) * (P[k] + 0.5 * M[k] + 0.4 * X[k]) * R[k]
dX = ip.stress_from_crisis * crisis_severity[k] * (1.0 - X[k]) + ip.polarisation * frag_new * (1.0 - X[k]) + ip.repression_backlash * P[k] * (1.0 - law_new) * (1.0 - X[k]) - ip.stabilisation * (R[k] + 0.5 * law_new) * X[k]
dM = ip.propaganda * P[k] * (1.0 - M[k]) + ip.patronage_feedback * mean_support * P[k] * (1.0 - M[k]) + ip.censorship * crisis_severity[k] * (1.0 - law_new) * (1.0 - M[k]) - ip.oversight * law_new * M[k] - 0.04 * X[k] * M[k]
dP = ip.ambition * P[k] * (1.0 - P[k]) + ip.crisis_capture * crisis_severity[k] * (1.0 - law_new) * (1.0 - P[k]) + 0.10 * mean_support * (1.0 - P[k]) + ip.apparatus_feedback * M[k] * (1.0 - P[k]) - ip.legal_drag * law_new * P[k] - ip.restoration * R[k] * (1.0 - mean_support) * P[k]
R[k + 1] = clip01(R[k] + cfg.dt * safe_scalar(dR, 0.0))
X[k + 1] = clip01(X[k] + cfg.dt * safe_scalar(dX, 0.0))
M[k + 1] = clip01(M[k] + cfg.dt * safe_scalar(dM, 0.0))
P[k + 1] = clip01(P[k] + cfg.dt * safe_scalar(dP, 0.0))
z = crisis_severity[k] + 0.25 * M[k] + 0.15 * mean_support - 0.55 * law_new - ip.crisis_threshold
alpha[k] = sigmoid(ip.crisis_steepness * z)
formal_autocrat_weight[k] = clip01(P[k] + (1.0 - P[k]) * alpha[k])
sim = 1.0 - np.abs(s_new[:, None] - s_new[None, :])
council_raw = (0.25 + 0.65 * same) * (0.20 + 0.80 * sim)
np.fill_diagonal(council_raw, 0.35)
autocrat_pull = clip01(
0.03
+ 0.50 * M[k]
+ 0.15 * crisis_severity[k]
+ 0.12 * s_new
+ 0.10 * faction["susceptibility"]
)
row_sums = council_raw.sum(axis=1, keepdims=True)
row_sums[row_sums <= 0] = 1.0
council_raw = council_raw / row_sums
council_block = council_raw * (1.0 - autocrat_pull[:, None])
K = np.zeros((N + 1, N + 1))
K[:N, :N] = council_block
K[:N, N] = autocrat_pull
allies = clip01(0.04 + 0.10 * s_new + 0.05 * faction["susceptibility"] - 0.06 * b_new)
total_allies = allies.sum()
if total_allies > 0:
K[N, :N] = allies / total_allies * (0.10 + 0.08 * (1.0 - law_new))
else:
K[N, :N] = 1.0 / N * 0.10
K[N, N] = 1.0 - K[N, :N].sum()
K = safe_array(K, 0.0)
row_sums = K.sum(axis=1, keepdims=True)
row_sums[row_sums <= 0] = 1.0
K = K / row_sums
centrality = stationary_distribution(K)
capture = clip01(
ip.capture_mix * (
M[k] * (1.0 - law_new)
+ 0.30 * frag_new
+ 0.20 * crisis_severity[k]
+ 0.15 * mean_support
)
)
w_formal = np.full(N + 1, (1.0 - formal_autocrat_weight[k]) / N)
w_formal[-1] = formal_autocrat_weight[k]
w_eff = safe_array((1.0 - capture) * w_formal + capture * centrality, fallback=1.0 / (N + 1))
s = w_eff.sum()
if s <= 0:
w_eff = np.full(N + 1, 1.0 / (N + 1))
else:
w_eff = w_eff / s
effective_autocrat_weight[k] = w_eff[-1]
for j in range(F):
group_weight[k, j] = w_eff[:N][masks[j]].sum()
group_weight[k, -1] = w_eff[-1]
if crisis_severity[k] > 0.50:
current_issue = rng.choice([0, 1, 2], p=[0.60, 0.25, 0.15])
elif X[k] > 0.45:
current_issue = rng.choice([0, 1, 2], p=[0.20, 0.20, 0.60])
else:
current_issue = rng.choice([0, 1, 2], p=[0.25, 0.35, 0.40])
issue_type[k] = current_issue
council_votes, leader_vote = issue_preferences(
current_issue, P[k], M[k], R[k], X[k], crisis_severity[k],
s_new, b_new, faction["security"], faction["legalism"], rng
)
votes = np.concatenate([council_votes, [leader_vote]])
decisions[k] = float(np.dot(w_eff, votes))
scores = inferno_station_scores(
P[k], M[k], R[k], X[k], crisis_severity[k], law_new,
s_new, b_new, perceived_threat, fs_new[faction["faction_id"]], faction
)
station[k] = assign_inferno_stations(scores)
crisis_state[-1] = crisis_state[-2]
crisis_severity[-1] = crisis_severity[-2]
alpha[-1] = alpha[-2]
formal_autocrat_weight[-1] = formal_autocrat_weight[-2]
effective_autocrat_weight[-1] = effective_autocrat_weight[-2]
decisions[-1] = decisions[-2]
group_weight[-1] = group_weight[-2]
faction_support[-1] = faction_support[-2]
faction_barrier[-1] = faction_barrier[-2]
legal_effective[-1] = legal_effective[-2]
fragmentation[-1] = fragmentation[-2]
issue_type[-1] = issue_type[-2]
station[-1] = station[-2]
P[-1] = P[-2]
M[-1] = M[-2]
R[-1] = R[-2]
X[-1] = X[-2]
return {
"time": t,
"P": P,
"M": M,
"R": R,
"X": X,
"support": support,
"barrier": barrier,
"perceived": perceived,
"faction_support": faction_support,
"faction_barrier": faction_barrier,
"legal_effective": legal_effective,
"fragmentation": fragmentation,
"alpha": alpha,
"formal_autocrat_weight": formal_autocrat_weight,
"effective_autocrat_weight": effective_autocrat_weight,
"group_weight": group_weight,
"decisions": decisions,
"issue_type": issue_type,
"crisis_state": crisis_state,
"crisis_severity": crisis_severity,
"station": station,
"station_counts": station_counts_over_time(station),
"final_station": station[-1].copy(),
"dominant_station": dominant_stations(station),
"faction": faction,
"internal": ip,
"names": person_names(cfg.council_size),
}
def set_style():
plt.rcParams.update({
"figure.facecolor": "#f7f3ed",
"axes.facecolor": "#fbf8f3",
"savefig.facecolor": "#f7f3ed",
"font.family": "DejaVu Serif",
"axes.edgecolor": "#3d322c",
"axes.labelcolor": "#3d322c",
"text.color": "#2f241f",
"xtick.color": "#3d322c",
"ytick.color": "#3d322c",
"grid.color": "#c9b9a6",
"grid.alpha": 0.25,
"axes.titleweight": "bold",
"axes.titlesize": 14,
"axes.labelsize": 11,
})
def plot_main_dashboard(res, cfg):
set_style()
t = res["time"]
F = cfg.n_factions
fig = plt.figure(figsize=(16, 12))
gs = fig.add_gridspec(3, 2, height_ratios=[1.1, 1.0, 1.0])
faction_cols = ["#6d597a", "#8ab17d", "#e9c46a", "#457b9d"][:F]
ax1 = fig.add_subplot(gs[0, 0])
stack = [res["group_weight"][:, i] for i in range(F)] + [res["effective_autocrat_weight"]]
labels = [f"Faction {i+1}" for i in range(F)] + ["Autocrat"]
cols = faction_cols + ["#9b2226"]
ax1.stackplot(t, *stack, labels=labels, colors=cols, alpha=0.92)
ax1.set_ylim(0, 1)
ax1.set_title("Power spectrum")
ax1.set_ylabel("Effective decision weight")
ax1.legend(loc="upper left", ncol=2, frameon=False)
ax2 = fig.add_subplot(gs[0, 1], sharex=ax1)
ax2.plot(t, res["P"], lw=2.2, label="Entrenched power", color="#9b2226")
ax2.plot(t, res["legal_effective"], lw=2.2, label="Legal barrier", color="#386641")
ax2.plot(t, res["R"], lw=1.8, label="Constitutional resilience", color="#1d3557")
ax2.plot(t, res["X"], lw=1.8, label="Social stress", color="#7f5539")
ax2.fill_between(t, 0, res["crisis_severity"], color="#b56576", alpha=0.10, label="Crisis field")
ax2.set_ylim(0, 1)
ax2.set_title("State variables")
ax2.legend(loc="upper left", ncol=2, frameon=False)
ax3 = fig.add_subplot(gs[1, 0], sharex=ax1)
for i in range(F):
ax3.plot(t, res["faction_support"][:, i], lw=1.8, label=f"Faction {i+1} support", color=faction_cols[i])
ax3.plot(t, res["fragmentation"], lw=2.2, color="#3a3a3a", label="Fragmentation")
ax3.set_ylim(0, 1)
ax3.set_title("Faction support and fragmentation")
ax3.legend(loc="upper left", ncol=2, frameon=False)
ax4 = fig.add_subplot(gs[1, 1], sharex=ax1)
for i in range(F):
ax4.plot(t, res["faction_barrier"][:, i], lw=1.8, label=f"Faction {i+1} barrier", color=faction_cols[i])
ax4.set_ylim(0, 1)
ax4.set_title("Faction barrier strength")
ax4.legend(loc="upper left", ncol=2, frameon=False)
ax5 = fig.add_subplot(gs[2, 0], sharex=ax1)
ax5.plot(t, res["decisions"], color="#a44a3f", lw=1.6, label="Decision centralisation")
ax5.plot(t, rolling_mean(res["decisions"], max(3, int(round(1 / cfg.dt)))), color="#2a9d8f", lw=2.4, label="One year rolling mean")
ax5.set_ylim(0, 1)
ax5.set_title("Decision pathway")
ax5.set_xlabel("Years")
ax5.legend(loc="upper left", frameon=False)
ax6 = fig.add_subplot(gs[2, 1])
heat = res["group_weight"].T
im = ax6.imshow(heat, aspect="auto", origin="lower", extent=[t[0], t[-1], 0, F + 1], cmap="magma")
ax6.set_yticks(np.arange(F + 1) + 0.5)
ax6.set_yticklabels([f"Faction {i+1}" for i in range(F)] + ["Autocrat"])
ax6.set_xlabel("Years")
ax6.set_title("Weight heat map")
fig.colorbar(im, ax=ax6, fraction=0.046, pad=0.04)
fig.tight_layout()
return fig
def plot_inferno_heatmap(res, cfg):
set_style()
t = res["time"]
cmap = ListedColormap(STATION_COLORS)
norm = BoundaryNorm(np.arange(-0.5, len(STATION_NAMES) + 0.5, 1), cmap.N)
fig, ax = plt.subplots(figsize=(16, 8))
im = ax.imshow(
res["station"].T,
aspect="auto",
origin="lower",
cmap=cmap,
norm=norm,
extent=[t[0], t[-1], 0, cfg.council_size + 1]
)
ax.set_title("Dante station of every person through time")
ax.set_xlabel("Years")
ax.set_ylabel("Person")
ax.set_yticks([0, cfg.council_size / 2, cfg.council_size, cfg.council_size + 1])
ax.set_yticklabels(["Council 1", f"Council {cfg.council_size // 2}", f"Council {cfg.council_size}", "Autocrat"])
cbar = fig.colorbar(im, ax=ax, ticks=np.arange(len(STATION_NAMES)), fraction=0.02, pad=0.02)
cbar.ax.set_yticklabels([n.replace("Fraud - ", "") for n in STATION_NAMES])
fig.tight_layout()
return fig
def plot_station_counts(res):
set_style()
t = res["time"]
counts = res["station_counts"]
fig, ax = plt.subplots(figsize=(16, 7))
ax.stackplot(
t,
[counts[:, i] for i in range(len(STATION_NAMES))],
labels=STATION_NAMES,
colors=STATION_COLORS,
alpha=0.95,
)
ax.set_title("Population of each Inferno station over time")
ax.set_xlabel("Years")
ax.set_ylabel("Number of people")
ax.legend(loc="upper left", ncol=4, frameon=False, fontsize=8)
fig.tight_layout()
return fig
def plot_selected_trajectories(res, cfg):
set_style()
t = res["time"]
indices = [0, cfg.council_size // 3, 2 * cfg.council_size // 3, cfg.council_size - 1, cfg.council_size]
labels = [res["names"][i] for i in indices]
cmap = ListedColormap(STATION_COLORS)
norm = BoundaryNorm(np.arange(-0.5, len(STATION_NAMES) + 0.5, 1), cmap.N)
fig, ax = plt.subplots(figsize=(16, 3.8))
data = res["station"][:, indices].T
im = ax.imshow(data, aspect="auto", origin="lower", cmap=cmap, norm=norm, extent=[t[0], t[-1], 0, len(indices)])
ax.set_yticks(np.arange(len(indices)) + 0.5)
ax.set_yticklabels(labels)
ax.set_xlabel("Years")
ax.set_title("Selected moral trajectories")
fig.colorbar(im, ax=ax, ticks=np.arange(len(STATION_NAMES)), fraction=0.025, pad=0.02)
fig.tight_layout()
return fig
def plot_overlay_counts(res, image_path):
img = plt.imread(image_path)
counts = np.bincount(res["final_station"], minlength=len(STATION_NAMES))
set_style()
fig, ax = plt.subplots(figsize=(8, 12))
ax.imshow(img)
ax.axis("off")
ax.set_title("Final Inferno counts over Dante's map")
for i, _ in enumerate(STATION_NAMES):
x, y, _ = STATION_POSITIONS[i]
txt = str(counts[i])
text_color = "white" if i >= 9 or i == 19 or i in [7, 8] else "black"
ax.text(
x, y, txt,
transform=ax.transAxes,
ha="center",
va="center",
fontsize=12,
color=text_color,
bbox=dict(facecolor=STATION_COLORS[i], edgecolor="black", boxstyle="round,pad=0.22", alpha=0.92)
)
fig.tight_layout()
return fig
def plot_people_overlay(res, image_path, seed=123):
img = plt.imread(image_path)
rng = np.random.default_rng(seed)
stations = res["final_station"]
set_style()
fig, ax = plt.subplots(figsize=(8, 12))
ax.imshow(img)
ax.axis("off")
ax.set_title("Final placement of every person on Dante's Inferno")
for i, c in enumerate(stations):
cx, cy, hw = STATION_POSITIONS[int(c)]
x = np.clip(cx + rng.uniform(-0.9 * hw, 0.9 * hw), 0.08, 0.92)
y = np.clip(cy + rng.normal(0.0, 0.009 if c < 6 else 0.007), 0.02, 0.98)
if i == len(stations) - 1:
ax.scatter([x], [y], transform=ax.transAxes, s=180, marker="*", color="gold", edgecolor="black", linewidth=0.8, zorder=5)
else:
ax.scatter([x], [y], transform=ax.transAxes, s=25, color="#0f4c81", edgecolor="white", linewidth=0.3, alpha=0.92, zorder=4)
fig.tight_layout()
return fig
def print_summary(cfg, res):
print("=" * 76)
print("Top level controls")
print(f"Institutional strength {cfg.institutional_strength:.3f}")
print(f"Autocrat skill {cfg.autocrat_skill:.3f}")
print(f"Crisis proneness {cfg.crisis_proneness:.3f}")
print(f"Information transparency {cfg.information_transparency:.3f}")
print(f"Social volatility {cfg.social_volatility:.3f}")
print("-" * 76)
print("Final state")
print(f"Entrenched autocrat power {res['P'][-1]:.3f}")
print(f"Effective autocrat weight {res['effective_autocrat_weight'][-1]:.3f}")
print(f"Legal barrier {res['legal_effective'][-1]:.3f}")
print(f"Constitutional resilience {res['R'][-1]:.3f}")
print(f"Social stress {res['X'][-1]:.3f}")
print("=" * 76)
def print_people_table(res, n=20):
names = res["names"]
final_station = res["final_station"]
dominant_station = res["dominant_station"]
print("=" * 96)
print(f"{'Person':<16} {'Final station':<34} {'Dominant station in second half':<34}")
print("-" * 96)
limit = min(n, len(names))
for i in range(limit):
print(f"{names[i]:<16} {STATION_NAMES[final_station[i]]:<34} {STATION_NAMES[dominant_station[i]]:<34}")
print(f"{names[-1]:<16} {STATION_NAMES[final_station[-1]]:<34} {STATION_NAMES[dominant_station[-1]]:<34}")
print("=" * 96)
if __name__ == "__main__":
cfg = MetaConfig(
years=100.0,
dt=1.0 / 12.0,
council_size=100,
n_factions=4,
seed=42,
institutional_strength=0.65,
autocrat_skill=0.55,
crisis_proneness=0.40,
information_transparency=0.60,
social_volatility=0.45,
)
inferno_image_path = "/mnt/data/58d5ae81-d00d-4b12-9cbb-2fddf958598b.png"
output_dir = "./inferno_outputs"
os.makedirs(output_dir, exist_ok=True)
res = simulate_inferno_republic(cfg, seed=cfg.seed)
print_summary(cfg, res)
print_people_table(res, n=20)
fig1 = plot_main_dashboard(res, cfg)
fig1.savefig(os.path.join(output_dir, "dashboard.png"), dpi=200, bbox_inches="tight")
fig2 = plot_inferno_heatmap(res, cfg)
fig2.savefig(os.path.join(output_dir, "inferno_heatmap.png"), dpi=200, bbox_inches="tight")
fig3 = plot_station_counts(res)
fig3.savefig(os.path.join(output_dir, "station_counts.png"), dpi=200, bbox_inches="tight")
fig4 = plot_selected_trajectories(res, cfg)
fig4.savefig(os.path.join(output_dir, "selected_trajectories.png"), dpi=200, bbox_inches="tight")
if os.path.exists(inferno_image_path):
fig5 = plot_overlay_counts(res, inferno_image_path)
fig5.savefig(os.path.join(output_dir, "inferno_overlay_counts.png"), dpi=200, bbox_inches="tight")
fig6 = plot_people_overlay(res, inferno_image_path, seed=cfg.seed)
fig6.savefig(os.path.join(output_dir, "inferno_people_overlay.png"), dpi=200, bbox_inches="tight")
plt.show()
